Application: The undercut anchors are widely used to install stone tiles, ceramic tiles, concrete tiles, and other wall cladding fixing panels, often used with aluminium brackets, L angles, anchor bolts, and other steel or aluminium structures.
Product Type: Facade Anchor, Stone Anchor, Back Bolt
Production Information:

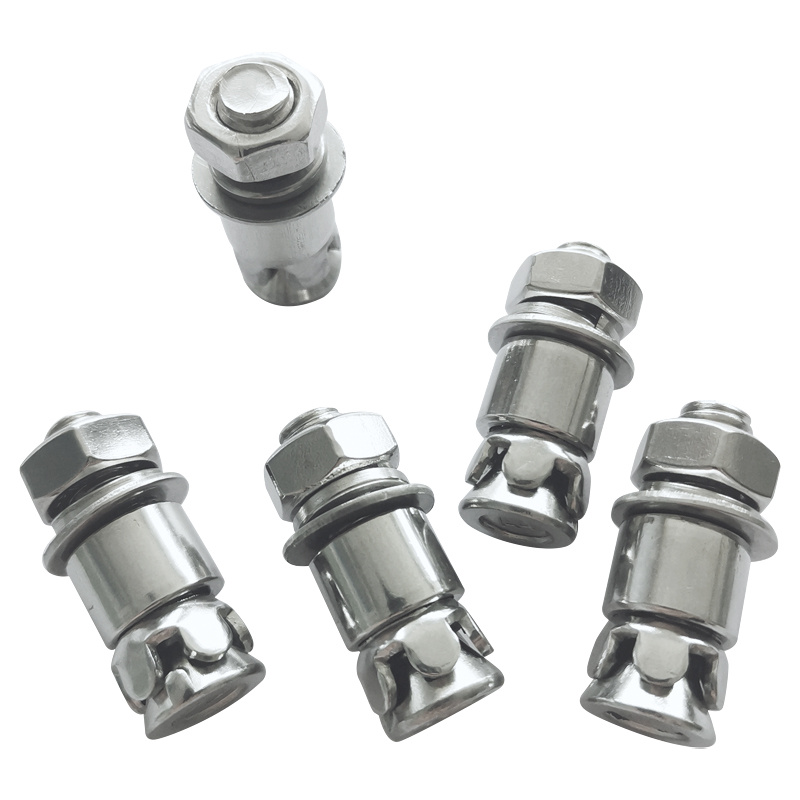

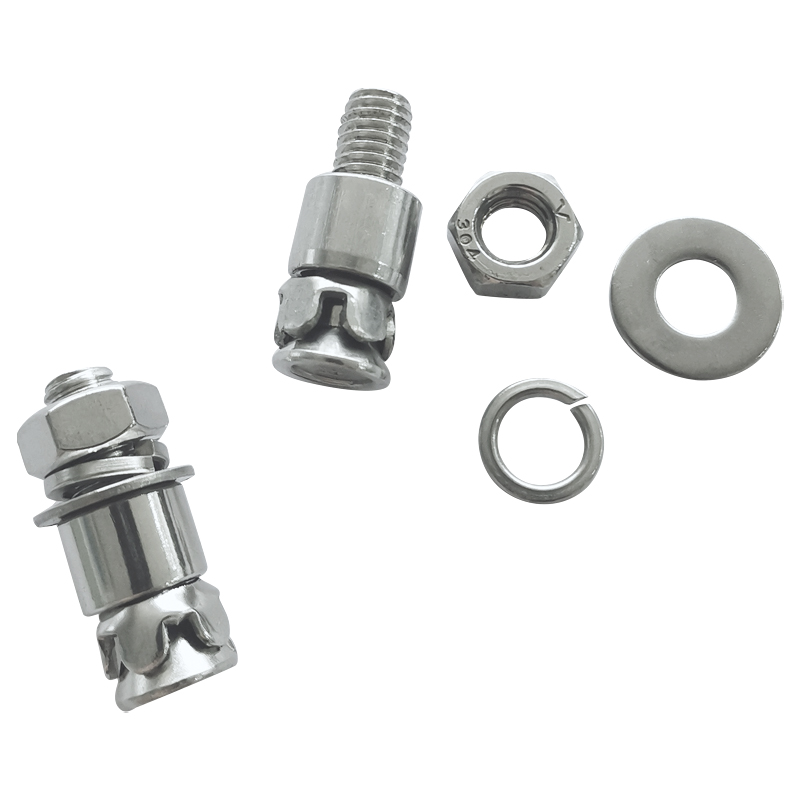

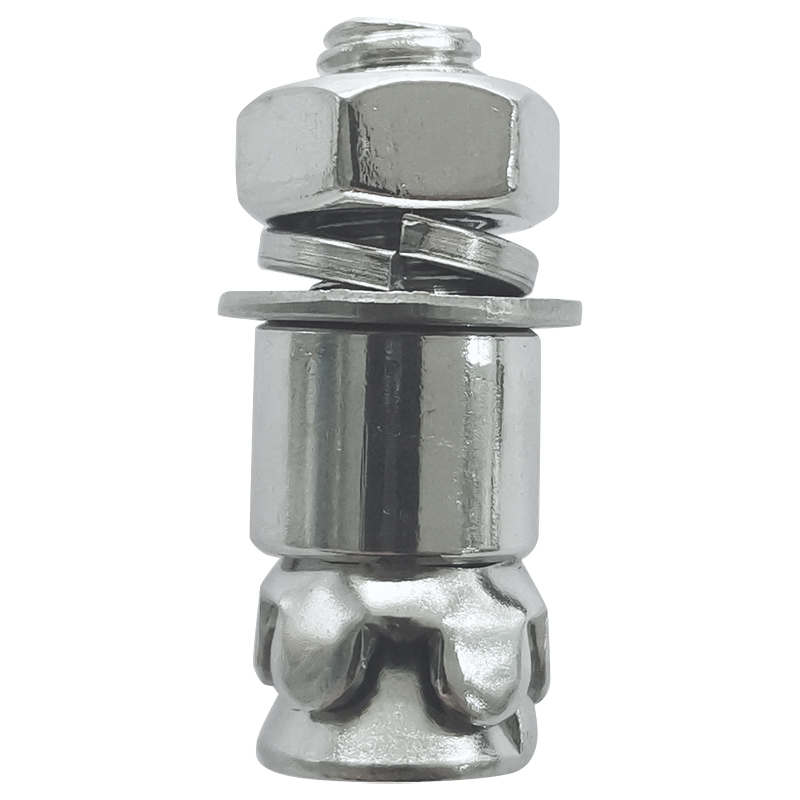

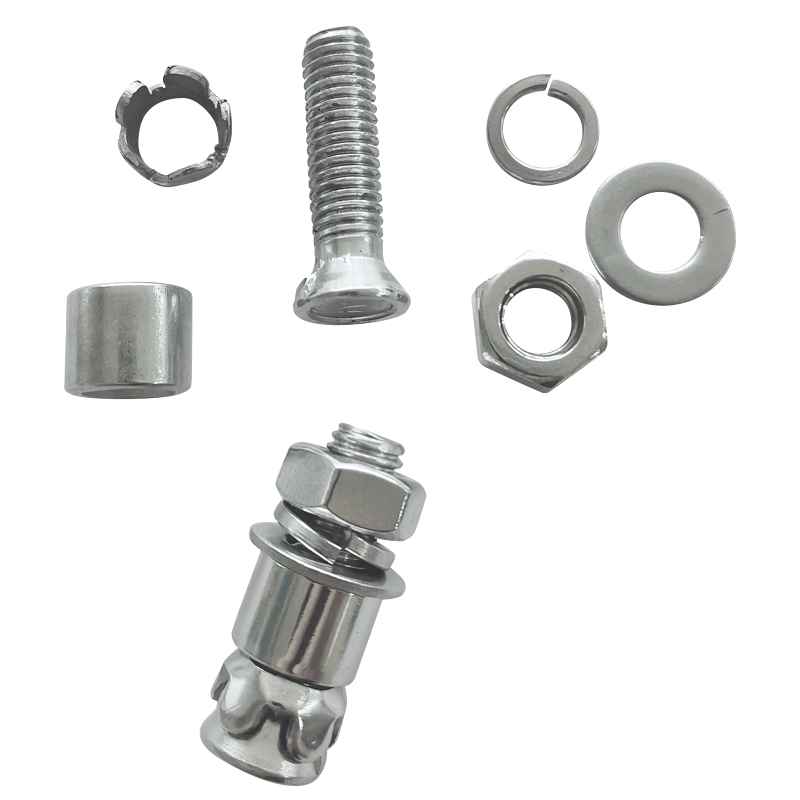

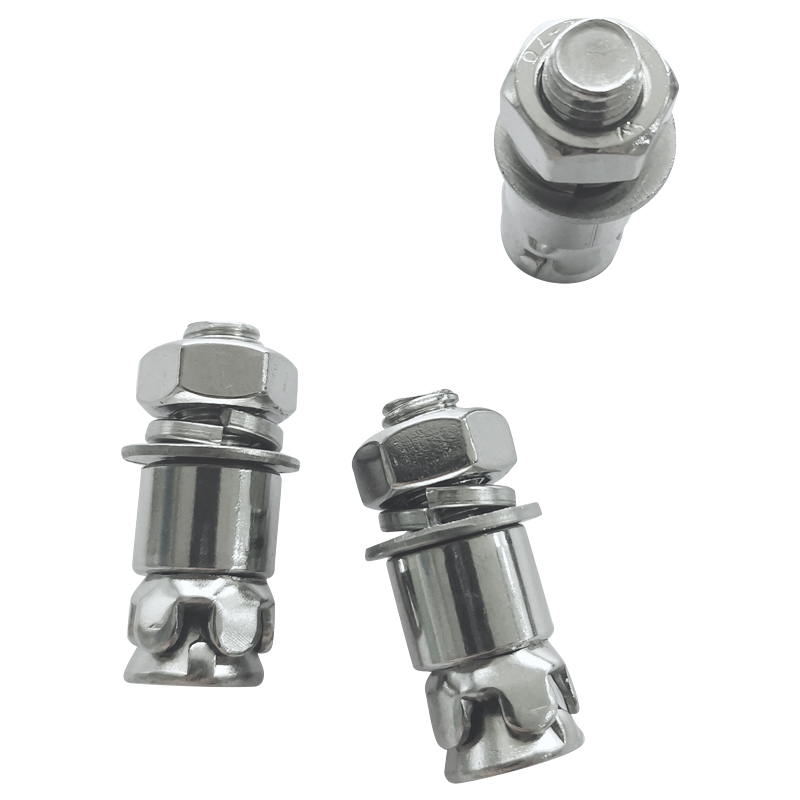

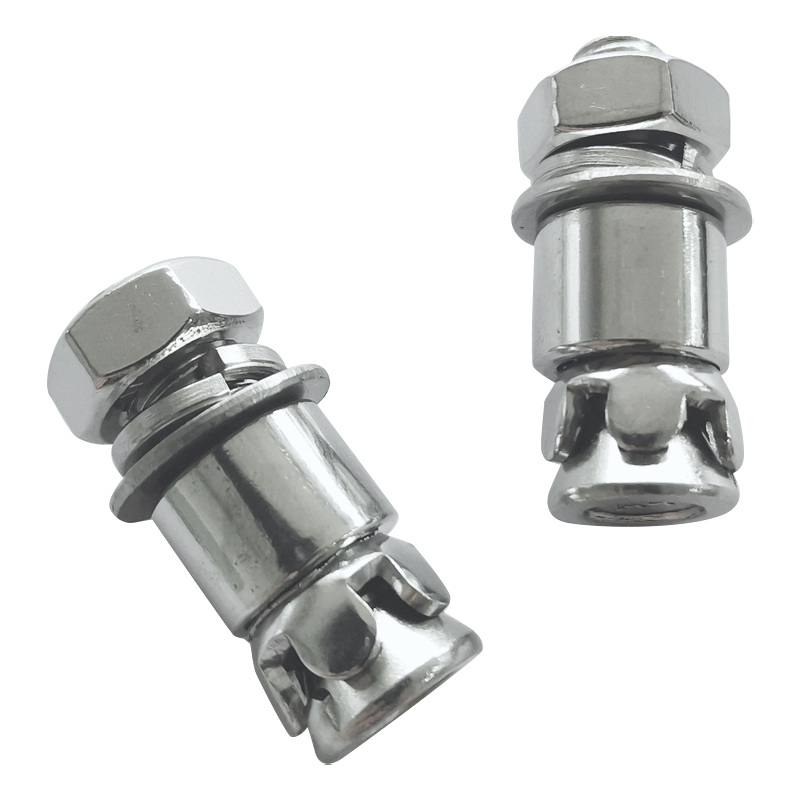

Product Name: | Undercut Anchor |

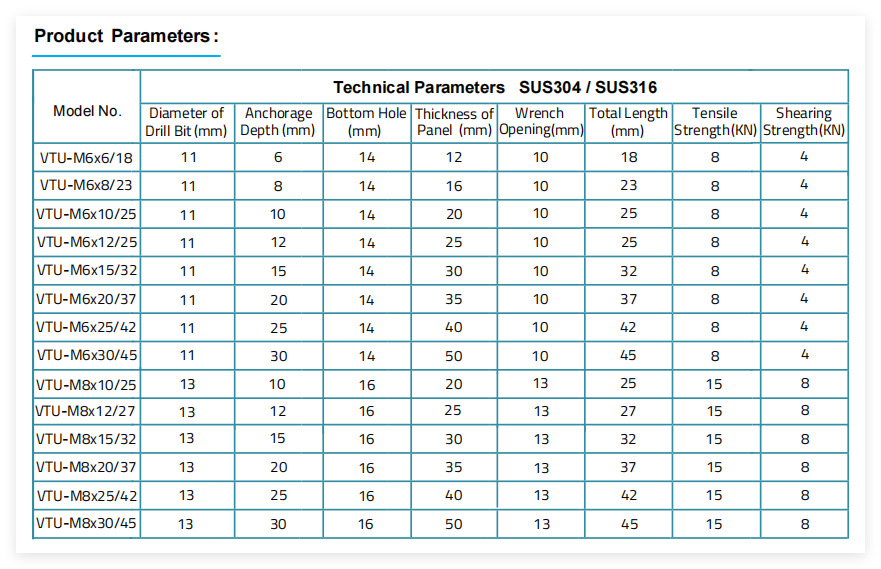

Model No.: | VTU-01 |
Size: | M6 / M8 |
Material: | Stainless Steel 304 / 316 |
Application: | Stone, Ceramic, Concrete, Artificial Stone, etc. |
Surface Treatment: | Shiny |
Color: | Silvery |
Packing: | Carton box (with pallet if quantity is big) |
Supply Ability: | 100,000 pcs per month |
MOQ: | 1000 set |
● Technical Principle:
The undercut anchor has continuous structural plane, the bottom diameter enlarges when it expands, while the up diameter keeps same. As the undercut anchor and the stone hole is in the state of concentric surface interdigitation, in the same product, under the same stress, the pressure is lower, it effectively improves the load capacity of the stone and undercut anchor.
