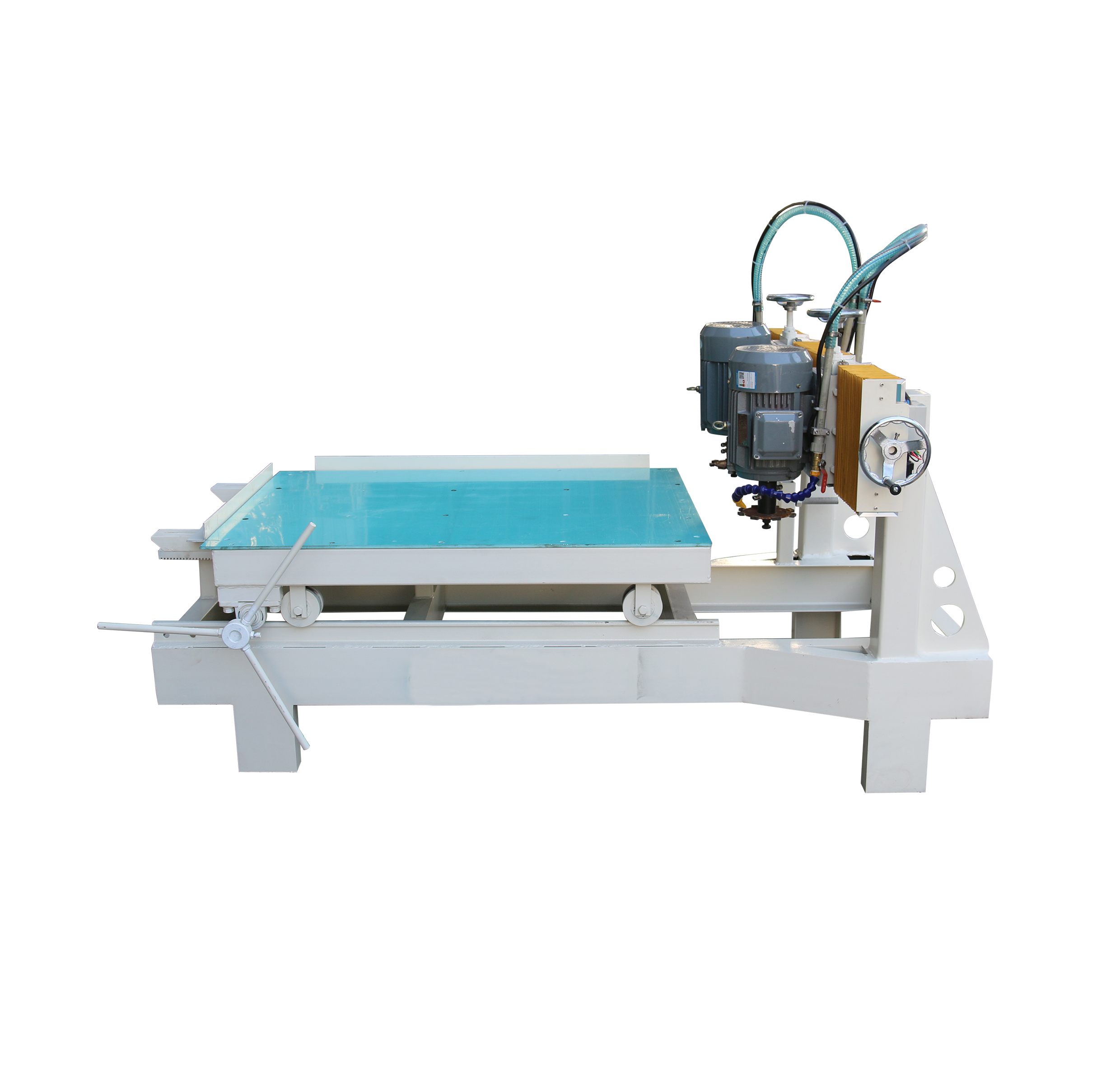

Product Name: Side Grooving Machine for Facade Cladding Tiles
Model No.: VTDM-P07
Application: This side grooving machine is used to cut grooves in the edge of stone tiles and ceramic tiles, as well as fiber concrete / cement tiles, which are widely used for wall cladding projects both in interior and exterior walls. Its operation is simple and easy, has double drills, quite flexible for movement and adjustment.
Product Type: Side Cutting Machine, Edge Grooving Machine, Stone Cutting Machine
Technical Parameters:
Name | Unit | Parameters |
Groove Diameter | mm | 6-18 |
Groove Depth | mm | 20-50 |
Dimension (LxWxH) | mm | 2180x1560x1280 |
Total Weight | kg | 650 |
Electric Voltage | V | 380 |
Revolutions | r/min | 2800 |
Motor Power | KW | 5.5 |
