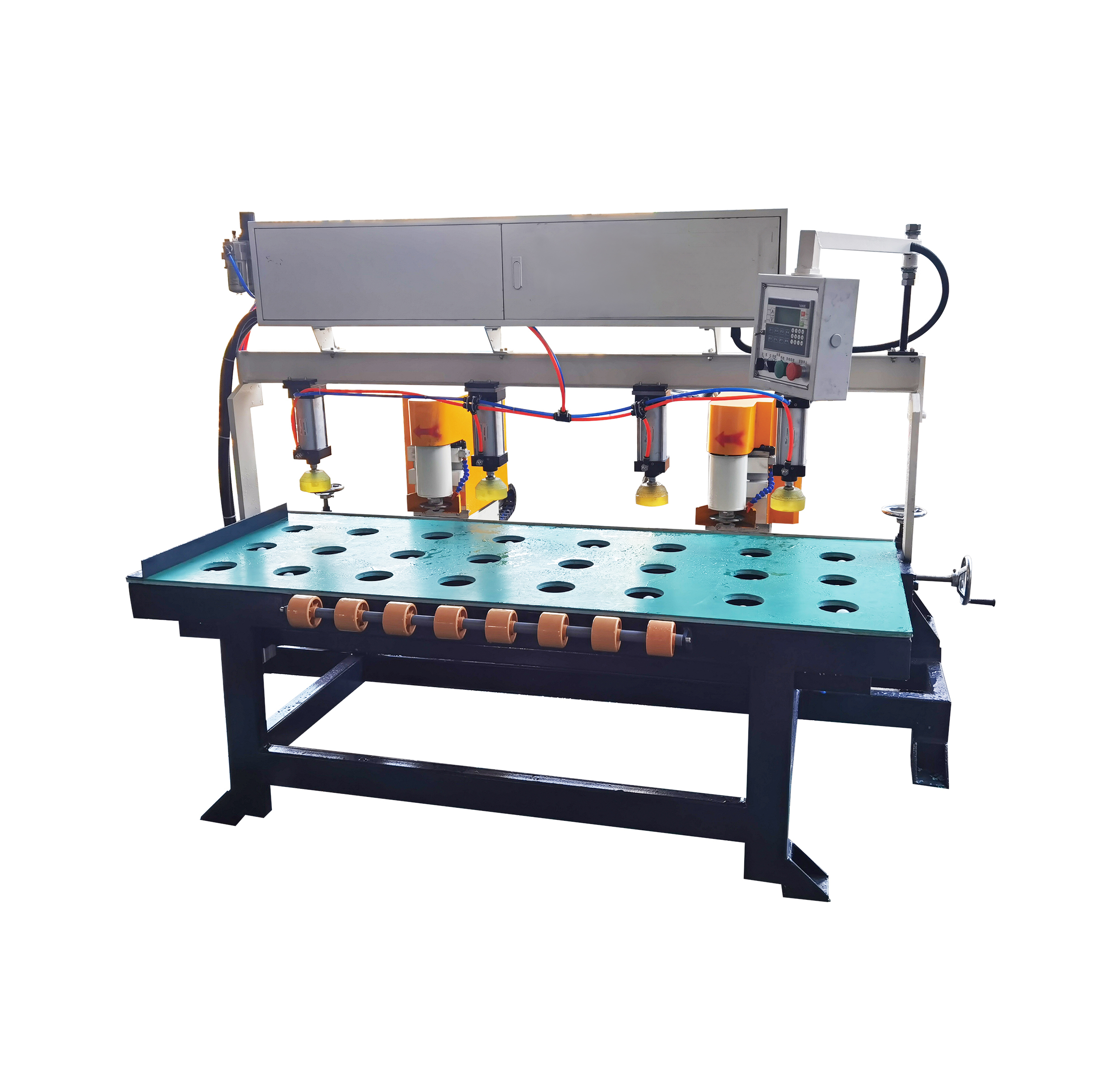

VTDM-P08 Automatic Slotting Machine for Cladding Fixing System

Product Name: VTDM-P08 Automatic Slotting Machine for Cladding Fixing System

Model No.: VTDM-P08

Application: This is an automatic slotting machine, used to cut the grooves in the   edge of cladding tiles, suitable for stone tiles, fiber cement tiles, ceramic tiles,   artificial stone tiles...etc, which are used for wall cladding projects.

Product Type: Slotting Machine, Edge Grooving Machine, Stone groove Machine

Technical Parameters:

Name	Unit	Parameters
Center Distance between Two Heads	mm	Min 260, Max1600
Cutting Depth	mm	20-50
Groove Thickness	mm	3-18
Dimension (LxWxH)	mm	1600x1750x2500
Total Weight	kg	900
Electric Voltage	V	380
Revolutions	r/min	3500
Motor Power	KW	4.0x2
