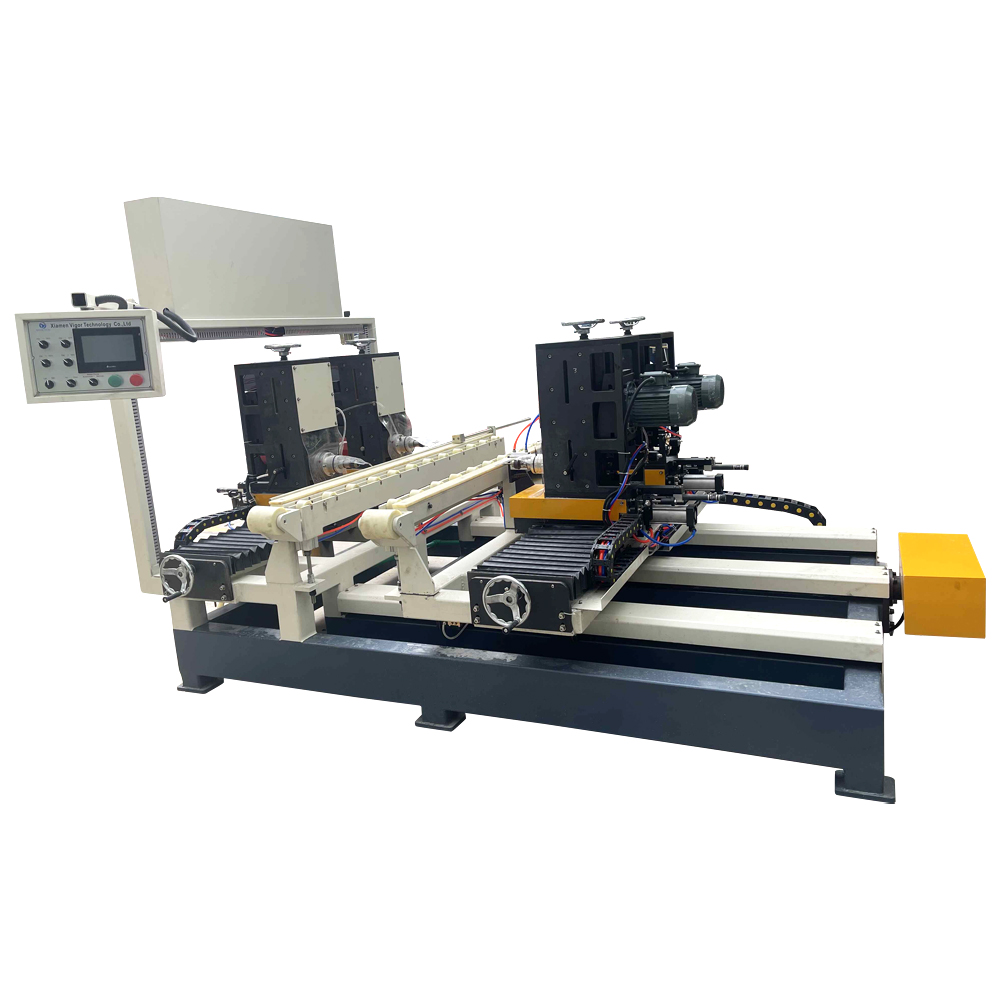

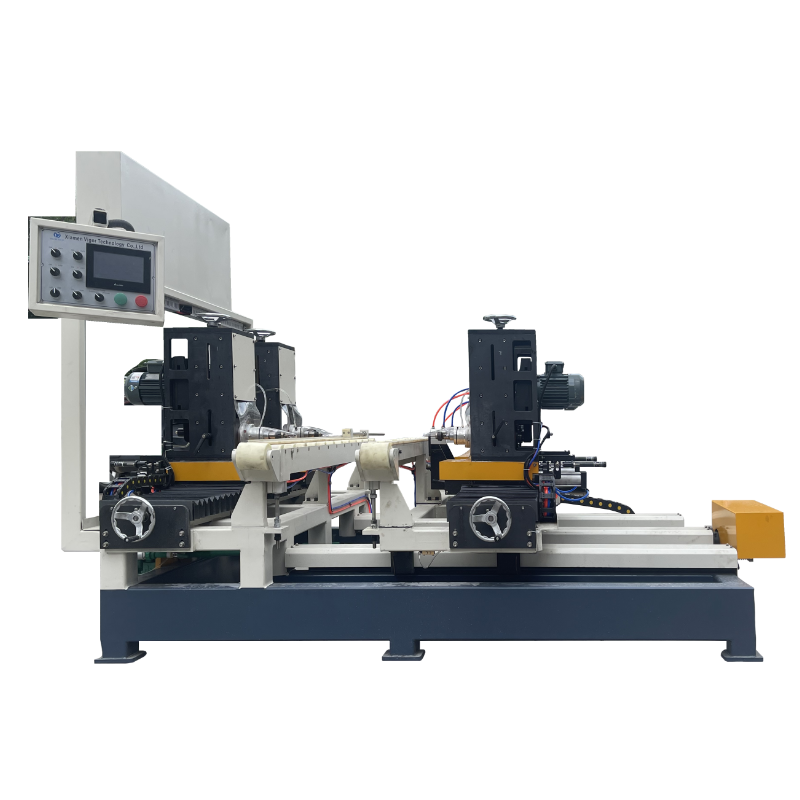

VTDM-P06 4 Head Automatic Edge Drilling Machine

Product Name: VTDM-P06 4 Head Automatic Edge Drilling Machine

Model No.: VTDM-P06

Application: This machine is used for automatic drilling on the edges of cladding   tiles. The drilling depth and distance are adjustable. There are 4 heads, ranged into   2 rows, 2 heads in one row, which can work simultaneously or individually.

Product Type: Side Drilling Machine, Edge Drilling Machine, PC Drill

Technical Parameters:

Name	Unit	Parameters
Voltage	V	380
Power	KW	5.5
Air Pressure	MPA	0.6
Water Pressure	MPA	0.15
Machine Head Slider Stroke	MM	0-100
Size	MM	3300x2160x2040
Weight	KG	2400
