Product Details
Collection

VTDM-P03 Undercut Drilling Machine

Collection：0
Inquiry
Product Details
Model VTDM-P03 Material /
Spec / Surface Treatment /

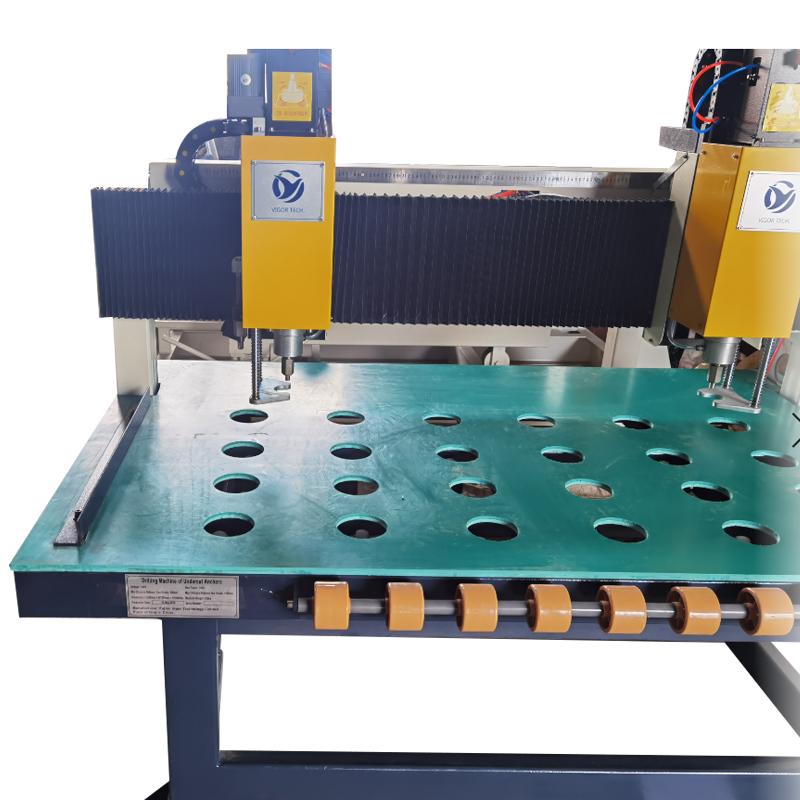

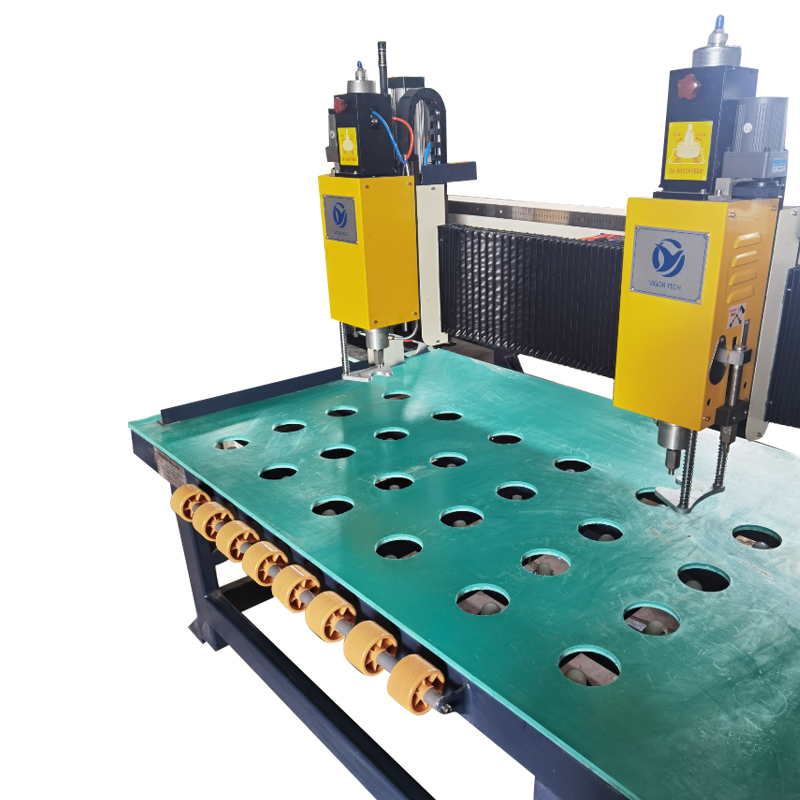

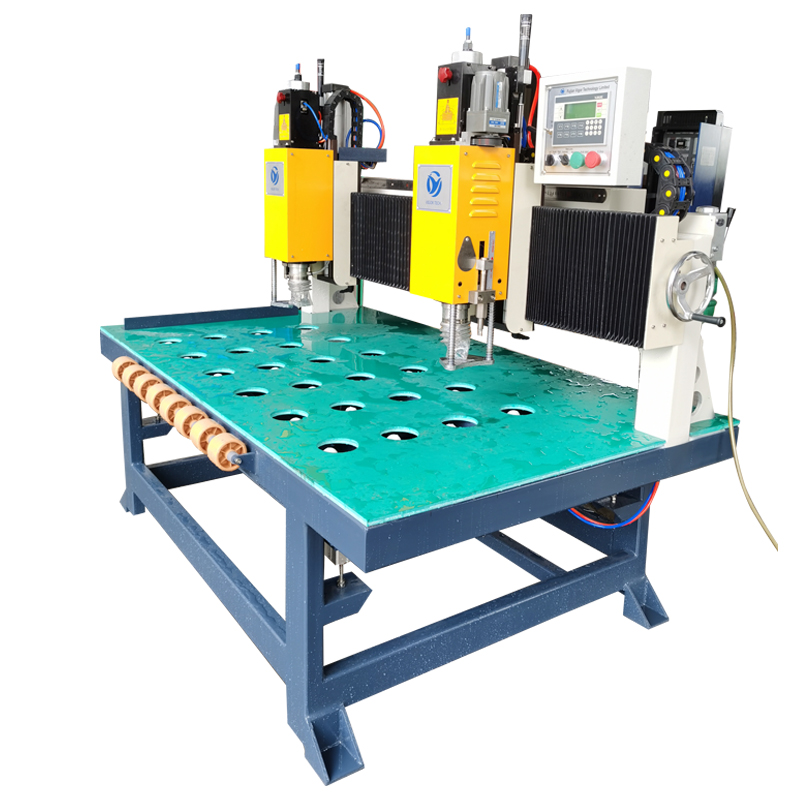

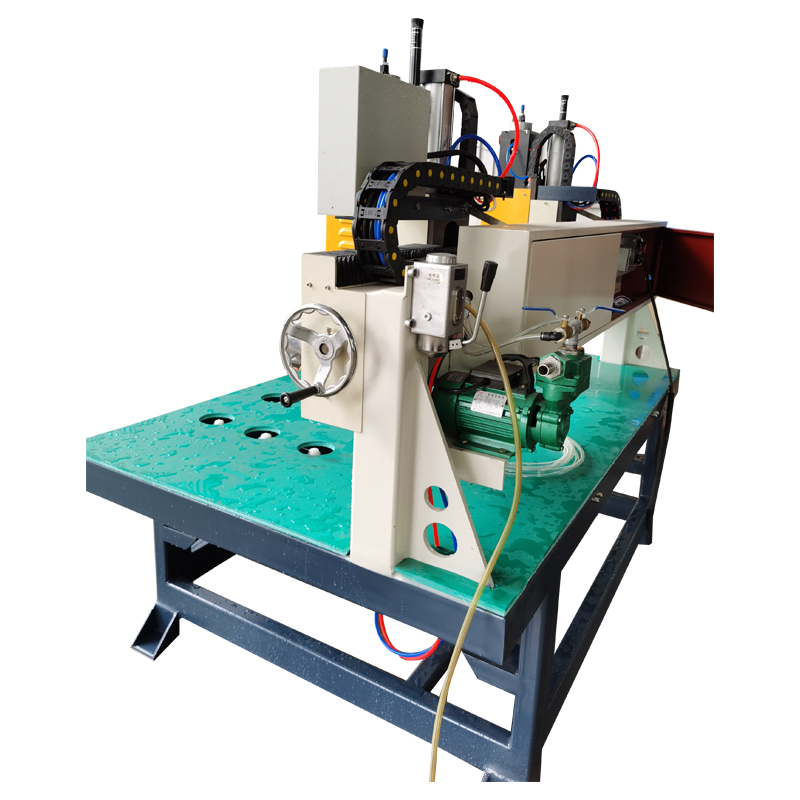

Product Name: VTDM-P03 Undercut Drilling Machine


Model No.: VTDM-P03


Application: This is a table drilling machine used to drill undercut holes in stone   panels and other types of cladding panels, has fast drilling efficiency, drilling distance, hole diameter and depth all can be adjusted.

Product Type: Undercut Drilling Machine, Stone Drilling Machine, Undercut Hole Drill Machine


Technical Parameters:


Name

Unit

Parameters

Drilling Diameter

mm

6-20

Drilling Depth

mm

5-70

Double-drill min width           between centers

mm

250

Double-drill max width           between centers

mm

1650

Motor Power

kw

1.5x2

Dimension (LxWxH)

mm

2000x1380x1800

Total Weight

kg

850

Electric Voltage

V

380

Revolutions

r/min

2800
