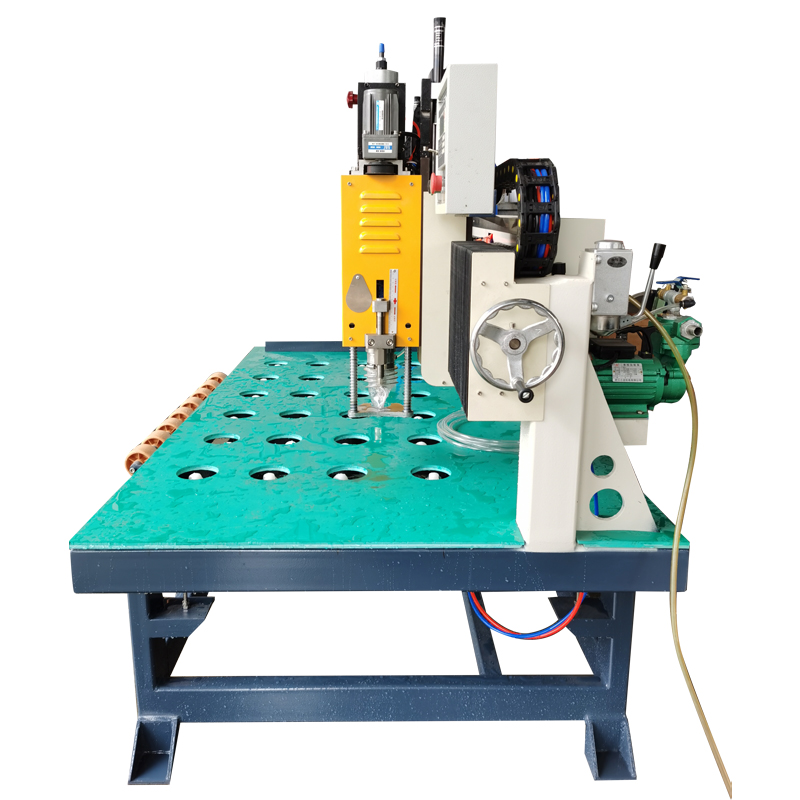

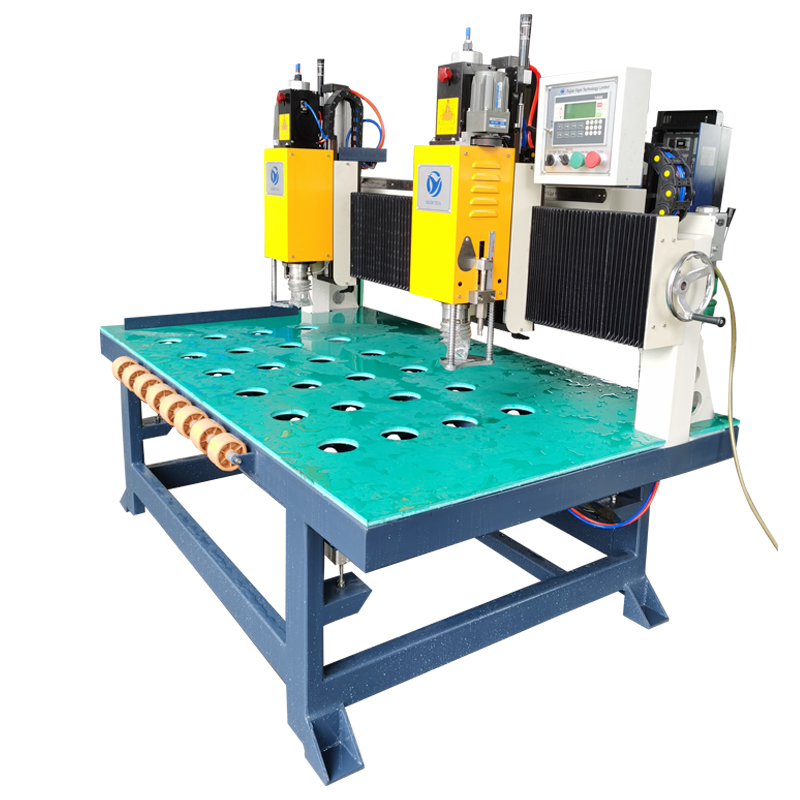

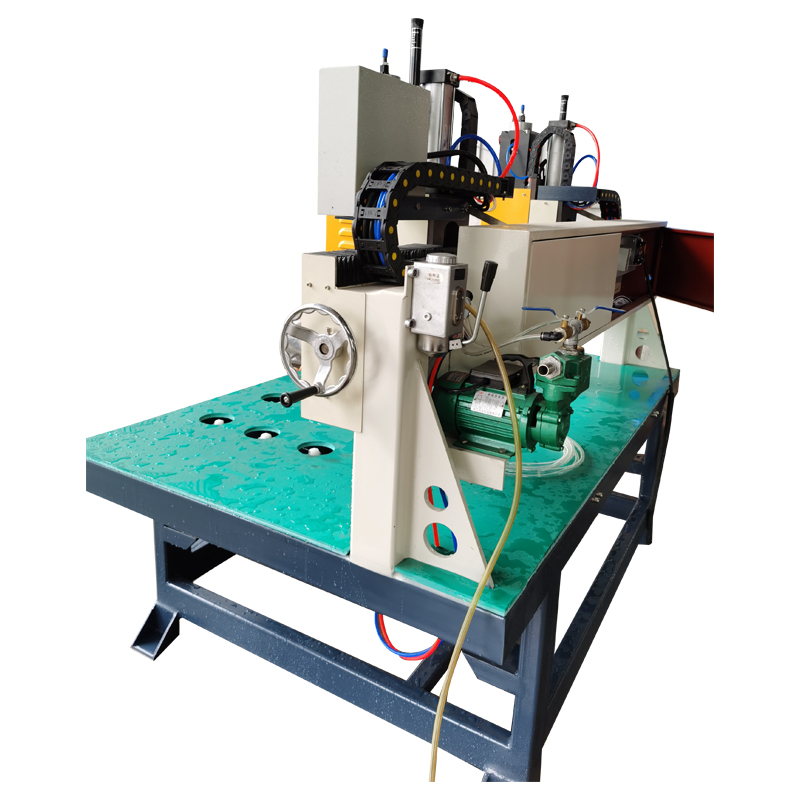

VTDM-P04 Three Head Undercut Drill Machine for Tiles

Collection：0
Inquiry
Product Details
Model VTDM-P04 Material /
Spec / Surface Treatment /

Product Name: VTDM-P04 Undercut Drilling Machine


Model No.: VTDM-P04

Application: This three head undercut drill machine is used to drill undercut holes in   cladding tiles, has 3 heads, can drill 3 holes at a time, easy to operate and has high   efficiency.

Product Type: Undercut Machine, Stone Drilling Machine, Undercut Bolt Drilling   Machine


Technical Parameters:


Name

Unit

Parameters

Drilling Diameter

mm

6-20

Drilling Depth

mm

5-70

Minimum center distance      between 2 bits

mm

250

Maximum center distance      between 2 bits

mm

1650

Motor Power

kw

1.5x3

Dimension (LxWxH)

mm

2500x1380x1800

Total Weight

kg

850

Electric Voltage

V

380

Revolutions

r/min

2800
